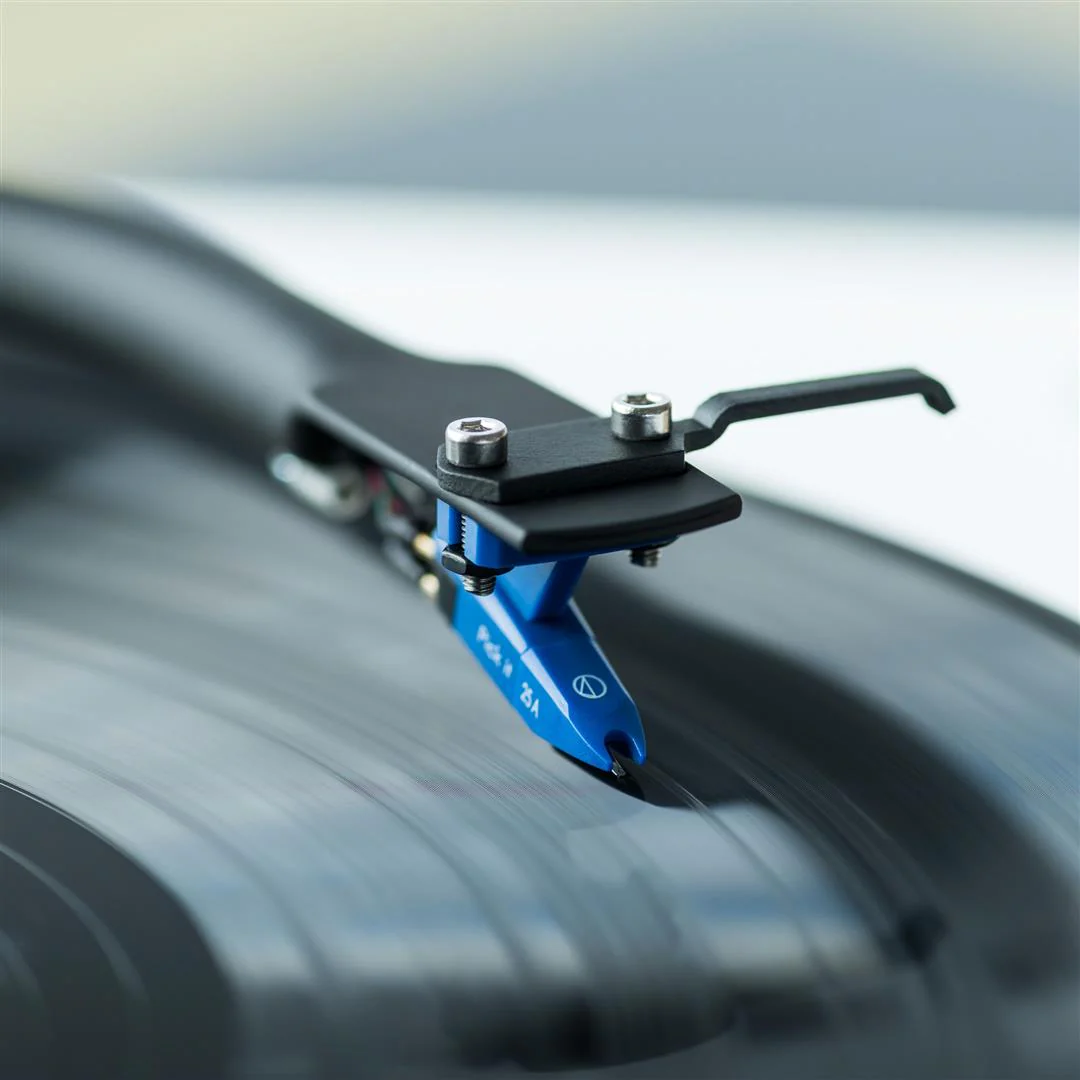

Pro-Ject Pick-IT 25A Moving Magnet Cartridge
- Pick-IT 25A Moving Magnet Cartridge is pre-installed on selected Pro-Ject turntables
- Based on Ortofon's established OM cartridge range
CARTRIDGES & STYLI
The Pick-IT 25A cartridge is based on a modified version of Ortofon's established OM 10 design. It is an easy to fit, optimum mount cartridge with a clean, clear and musical output.
The replacement stylus is designed to match the Pick-IT 25A cartridge, but will also work on any other Ortofon OM cartridge body
Features
- Pick-IT 25A is a Moving Magnet (MM) design based on Ortofon OM 10
- Elliptical stylus profile
- Simple push-fit replacement process
Specifications
| Stylus type: | Elliptical |
| Weight: | 5 g |
| Stylus tip radius: | 8 x 18 µm |
| Frequency response: | 20 - 24.000 Hz |
| Output voltage | 5.5 mV |
| Channel separation: | >25dB @ 1kHz |
| Compliance dynamic/lateral: | 25 µm/mN |
| Internal inductance: | 580 mH |
| Tracking force range: | 1.25-1.75 g |
| Recommended tracking force: | 1.5 g |
| Recommended load resistance: | 200 - 600 p F |
| Recommended load resistance: | 47Ω |
