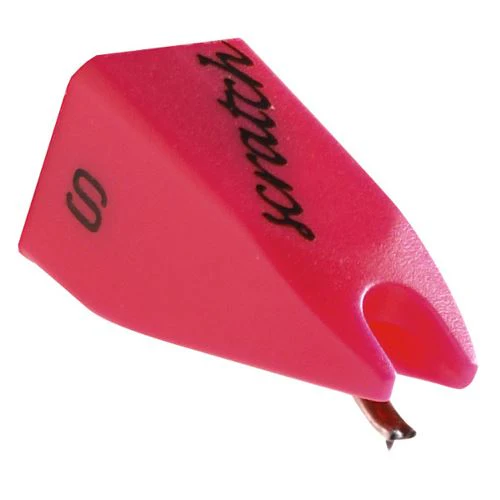

Ortofon Scratch Replacement Stylus

Product image 1
1 / 2

Ortofon Scratch Replacement Stylus

Concorde Scratch - especially developed for scratch and back-cueing

As implied by the name, the Scratch is intended especially for the disciplines of scratch and back-cueing.

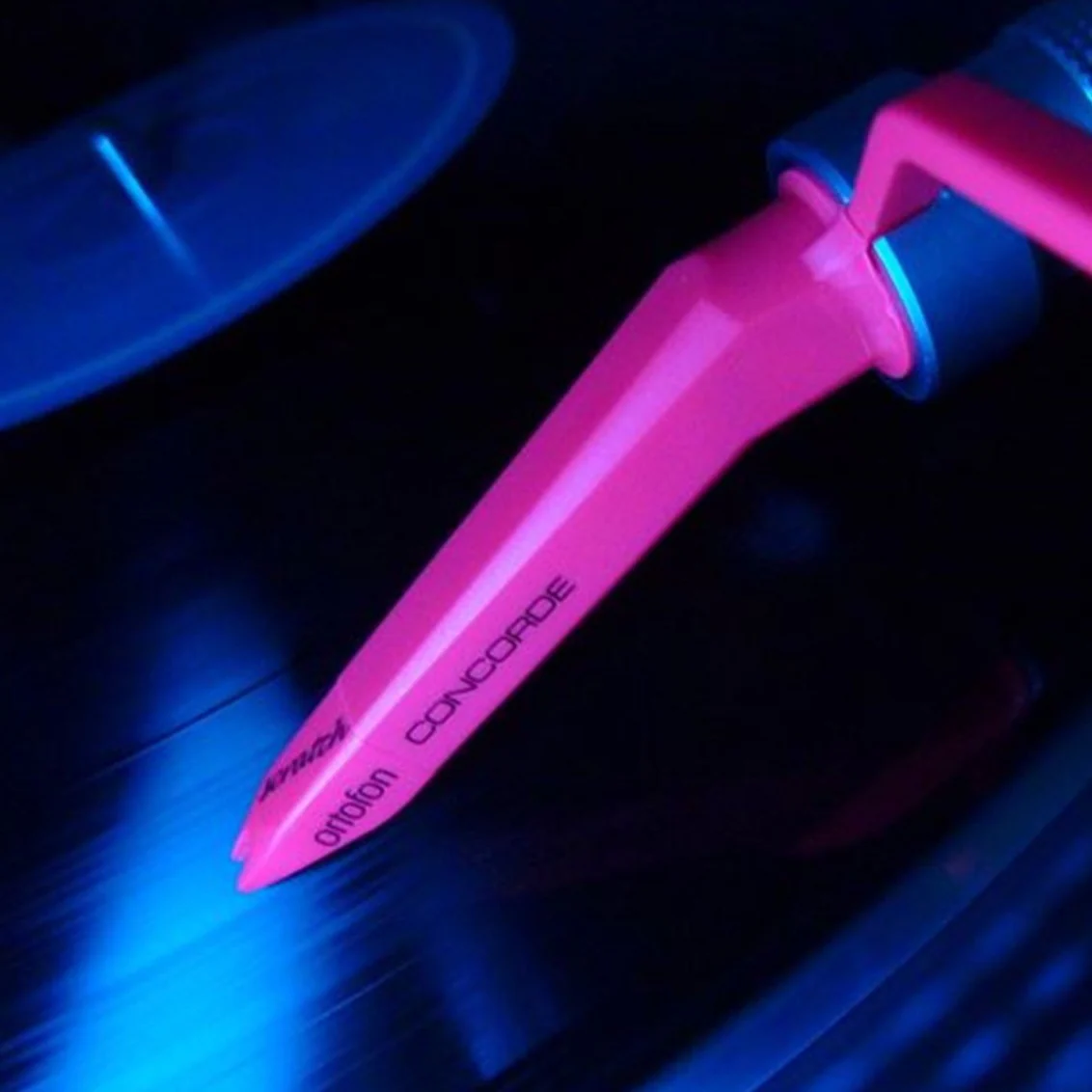

It is made of a fluorescent neon-red material with the intention it becoming highly apparent in spotlight and luminous in ultraviolet light. For DJs that require increased tracking ability, the Scratch is up to the task.

Featuring a reinforced rubber suspension, DJs need not worry about compromising sound quality and stylus life when working with higher tracking forces. With solid bass reproduction and extended highs, the Scratch is great for any style, providing energetic, in-your-face sound.

Very high output! Maximum scratch performance guaranteed!

Specifications

Output voltage at 1000Hz, 5cm/sec.
7 mV
Channel balance at 1kHz
1 dB
Channel separation at 1kHz
 25 dB
Channel separation at 15 kHz
15 dB
Frequency response
20-15.000 Hz 3dB/-2dB
Tracking ability at 315 Hz at recommended tracking force
80 μm
Compliance, dynamic lateral
6 μm/m N
Stylus type
Spherical
Stylus tip radius
R 18 μm
Tracking force range
3,0-5,0 g (30-50 mN)
Tracking force recommended
4,0 g (40 mN)
Tracking angle
20°
Internal impedance, DC resistance
750 Ohm
Internal inductance
450 mH
Recommended load resistance
47 kOhm
Recommended load capacitance
200-600 pF
Cartridge weight
18,5 g

Compatible with cartridges

 Scratch


Concorde Scratch - especially developed for scratch and back-cueing

As implied by the name, the Scratch is intended especially for the disciplines of scratch and back-cueing.

It is made of a fluorescent neon-red material with the intention it becoming highly apparent in spotlight and luminous in ultraviolet light. For DJs that require increased tracking ability, the Scratch is up to the task.

Featuring a reinforced rubber suspension, DJs need not worry about compromising sound quality and stylus life when working with higher tracking forces. With solid bass reproduction and extended highs, the Scratch is great for any style, providing energetic, in-your-face sound.

Very high output! Maximum scratch performance guaranteed!

Specifications

Output voltage at 1000Hz, 5cm/sec.
7 mV
Channel balance at 1kHz
1 dB
Channel separation at 1kHz
 25 dB
Channel separation at 15 kHz
15 dB
Frequency response
20-15.000 Hz 3dB/-2dB
Tracking ability at 315 Hz at recommended tracking force
80 μm
Compliance, dynamic lateral
6 μm/m N
Stylus type
Spherical
Stylus tip radius
R 18 μm
Tracking force range
3,0-5,0 g (30-50 mN)
Tracking force recommended
4,0 g (40 mN)
Tracking angle
20°
Internal impedance, DC resistance
750 Ohm
Internal inductance
450 mH
Recommended load resistance
47 kOhm
Recommended load capacitance
200-600 pF
Cartridge weight
18,5 g

Compatible with cartridges

 Scratch
