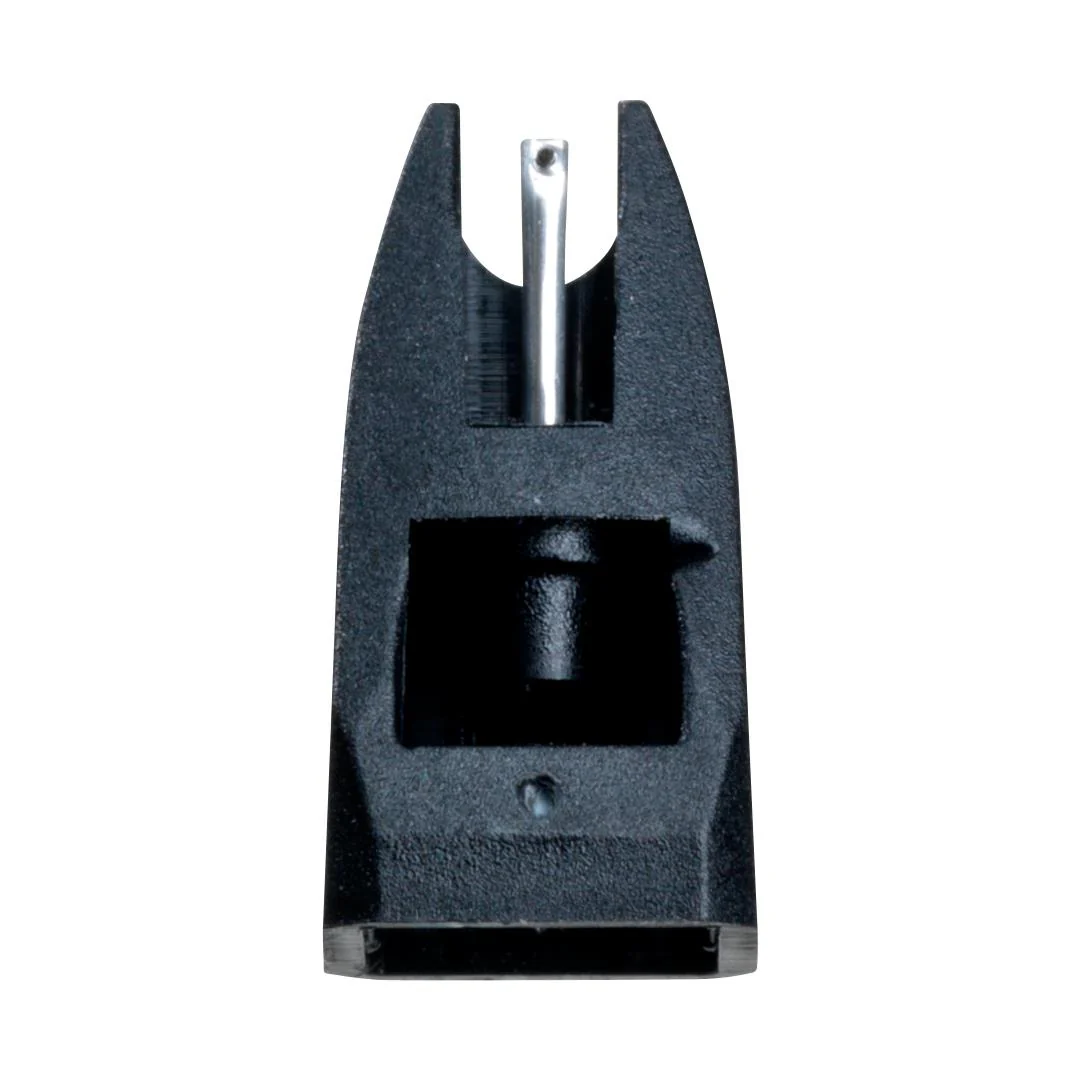

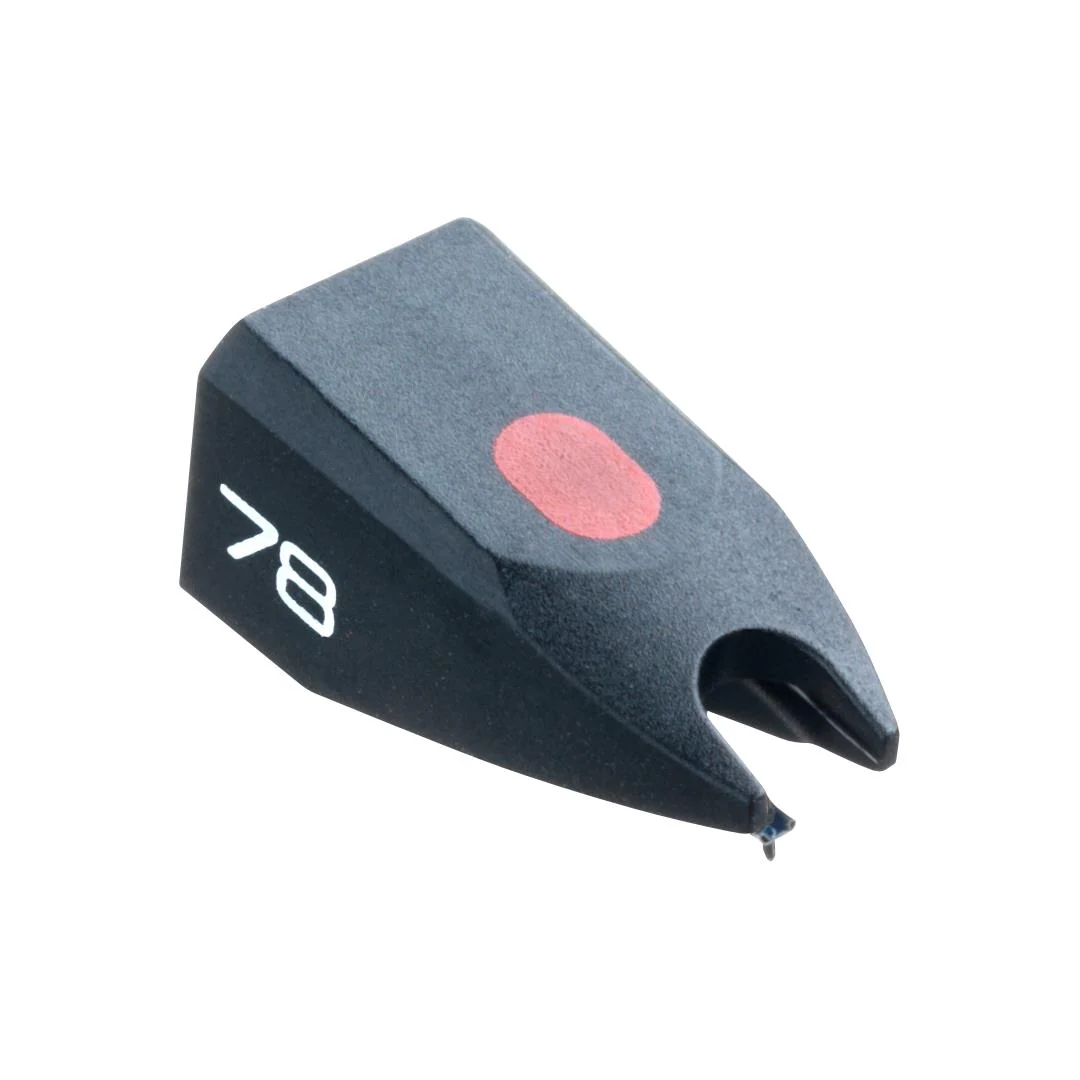

Ortofon Hi-Fi OM 78 Replacement Stylus
- Easily interchangable with other OM styli
- Specially designed stylus for reading large grooves of 78 rpm records
- Spherical stylus profile
Replacement stylus, recommended for the following cartridge models:Â
All Super OM, OM, OMP, TM, Concorde cartridges for playing 78 r.p.m. recordsÂ
Please note, all cartridges within the OM range have the same fitting, so they can all fit the Stylus 5, Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and Stylus 78.
Features
- Easily interchangable with other OM styli
- Specially designed stylus for reading large grooves of 78 rpm records
- Spherical stylus profile
Specifications
| Frequency Range: | 20Hz - 15kHz |
| Frequency Response 20 - 20,000Hz: | +2 / -3dB |
| Tracking Ability at 315Hz: | Typically 60”m |
| Compliance, Dynamic, Lateral: | 15”m |
| Stylus Type: | Spherical |
| Stylus Tip Radius r / R: | 65”m |
| Equivalent Stylus Tip Mass: | 0.5mg |
| Tracking Force Range: | 1.75 - 2.25g (17.5 - 22.5mN) |
| Recommended Tracking Force: | 2g (20mN) |
| Tracking Angle: | 20Âș |
| Stylus Colour: | Black |
- Easily interchangable with other OM styli
- Specially designed stylus for reading large grooves of 78 rpm records
- Spherical stylus profile
Replacement stylus, recommended for the following cartridge models:Â
All Super OM, OM, OMP, TM, Concorde cartridges for playing 78 r.p.m. recordsÂ
Please note, all cartridges within the OM range have the same fitting, so they can all fit the Stylus 5, Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and Stylus 78.
Features
- Easily interchangable with other OM styli
- Specially designed stylus for reading large grooves of 78 rpm records
- Spherical stylus profile
Specifications
| Frequency Range: | 20Hz - 15kHz |
| Frequency Response 20 - 20,000Hz: | +2 / -3dB |
| Tracking Ability at 315Hz: | Typically 60”m |
| Compliance, Dynamic, Lateral: | 15”m |
| Stylus Type: | Spherical |
| Stylus Tip Radius r / R: | 65”m |
| Equivalent Stylus Tip Mass: | 0.5mg |
| Tracking Force Range: | 1.75 - 2.25g (17.5 - 22.5mN) |
| Recommended Tracking Force: | 2g (20mN) |
| Tracking Angle: | 20Âș |
| Stylus Colour: | Black |
