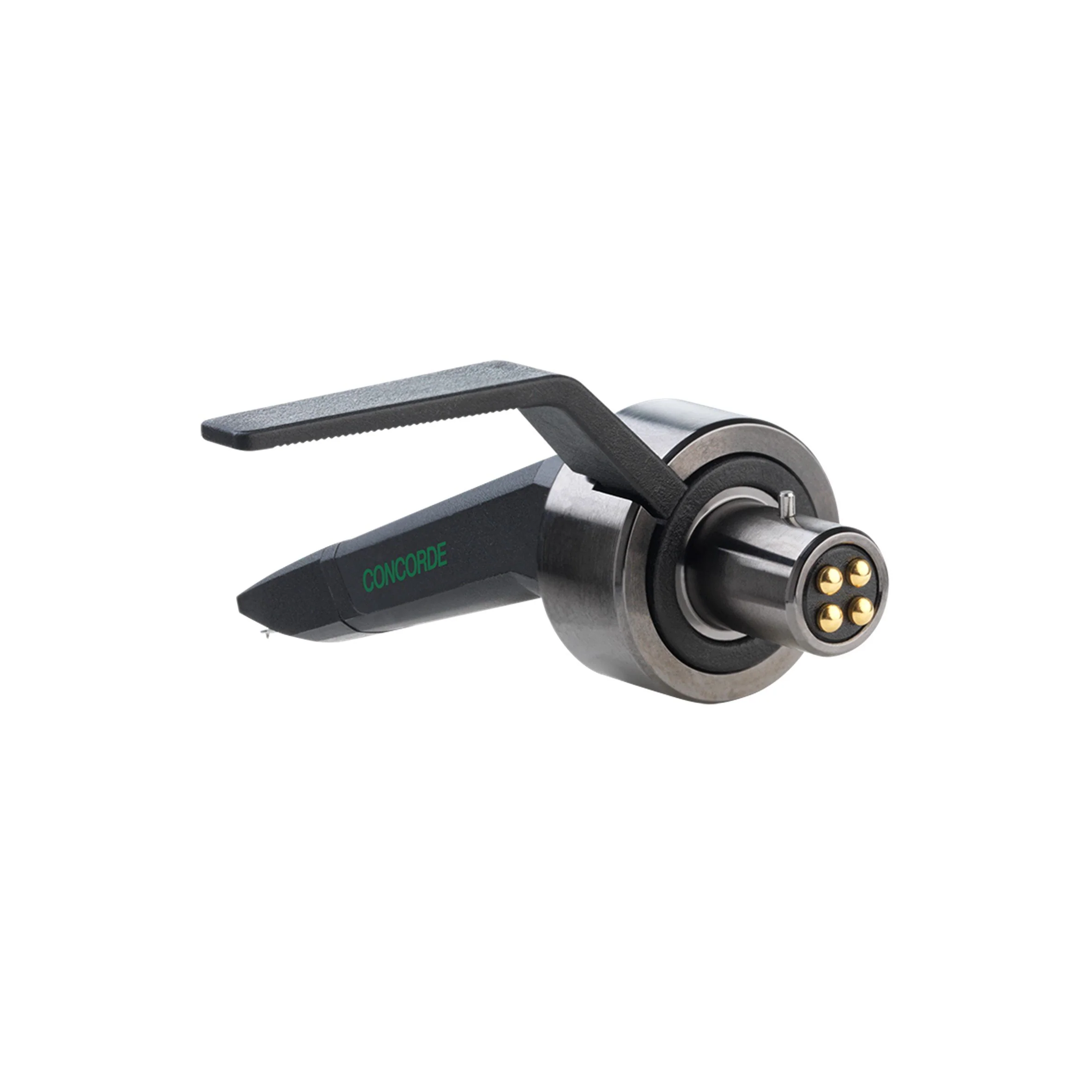

Ortofon Concorde MKII Mix Cartridge
The MIX is a general-purpose model for scratch and back-cueing
• Provides great performance and durability. It has a good quality spherical stylus, a solid cantilever, and serves general purposes well.
• It offers both reasonable output, high sound quality and a good tracking ability for virtually any style of music.
• With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the longest running values in DJ cartridges.
Specifications
|
Output voltage at 1000Hz, 5cm/sec. - |
6 mV |
| Channel balance at 1kHz - | 1,5 dB |
| Channel separation at 1kHz -Â | Â 20 dB |
| Channel separation at 15 kHz -Â | 15 dB |
| Tracking ability at 315 Hz at recommended tracking force - | 100 μm |
| Compliance, dynamic lateral - | 14 μm/m N |
| Stylus type - | Spherical R 18 μm |
| Tracking force range - | Â 2 - 4 g |
| Tracking force recommended - | 3 g |
| Internal impedance, DC resistance - | 700 Ohm |
| Internal inductance - | 450 mH |
| Recommended load resistance - | 47 kOhm |
| Recommended load capacitance - | 200-600 pF |
| Cartridge weight - | 18,5 g |
| Replacement stylus unit - | Â MIX |
