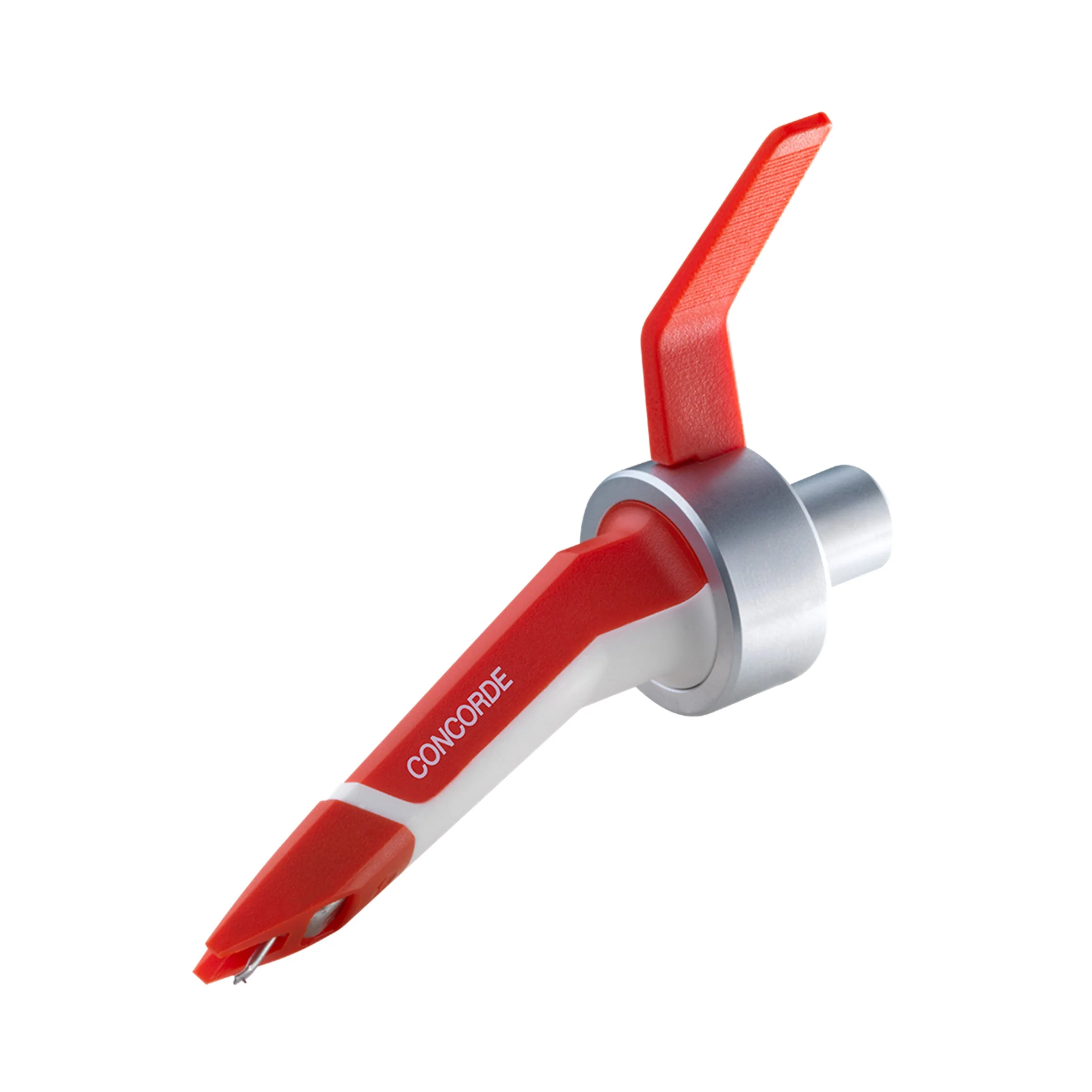

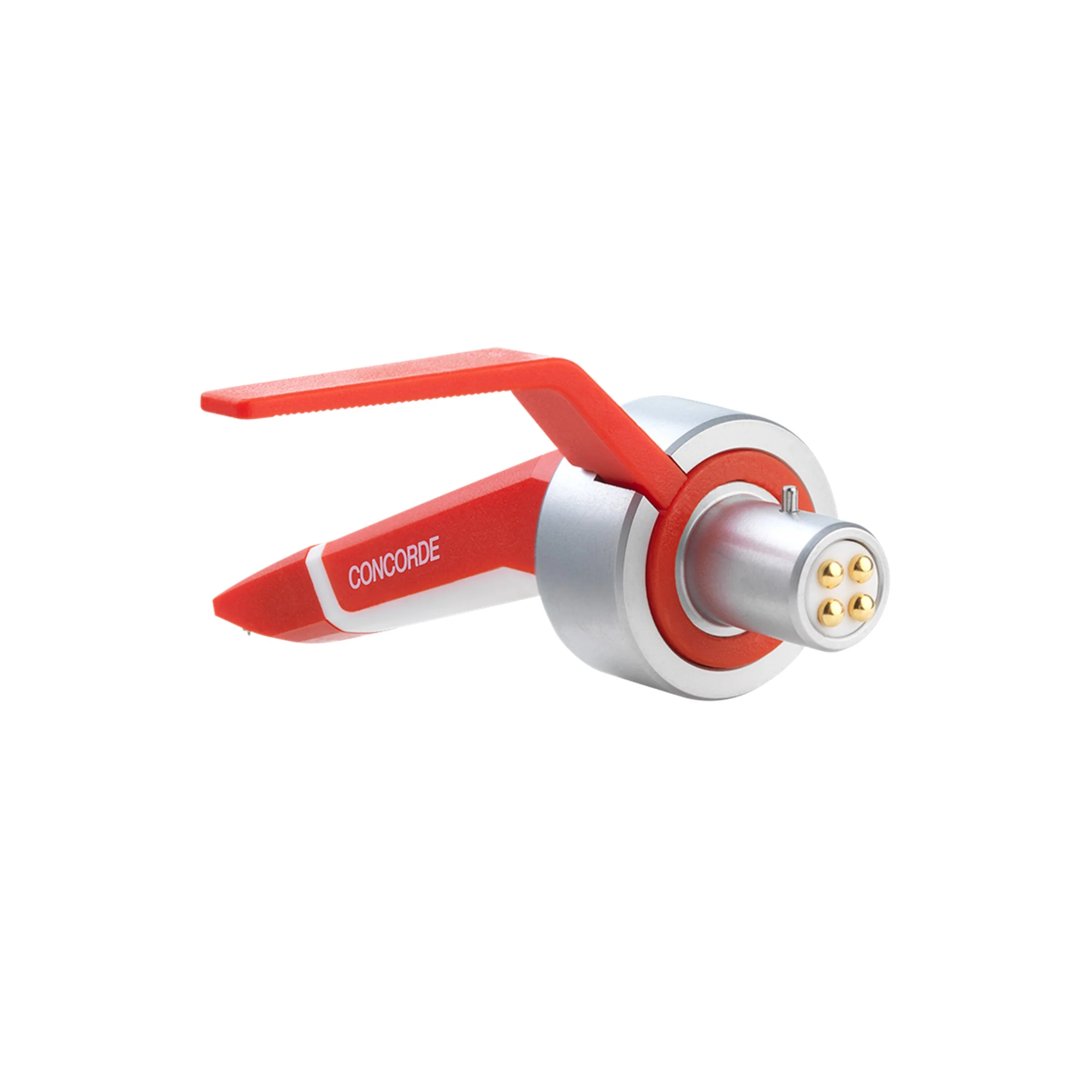

Ortofon Concorde MKII Digital Cartridge
Concorde DIGITAL is designed to extend the life of timecode vinyl and minimize errors in decoding
• At the same time DIGITAL provides optimal output voltage and sound quality for use with conventional vinyl.
• This optimized 10 mV output voltage maximizes the signal-to-noise ratio of the audio being fed to the software, which results in better interpretation of the timecode signal.
• Furthermore, a decrease in the reproduction of frequencies where vinyl wear & crackle occur helps to minimize errors in the interpretation of the timecode signal and helps timecoded vinyl records last longer.
Specifications
|
Output voltage at 1000Hz, 5cm/sec. -
|
10 mV
|
|
Channel balance at 1kHz -
|
1 dB
|
|
Channel separation at 1kHz -
|
22 dB
|
|
Channel separation at 15 kHz -
|
15 dB
|
|
Tracking ability at 315 Hz at recommended tracking force -
|
100 μm
|
|
Compliance, dynamic lateral -
|
14 μm/m N
|
|
Stylus type -
|
Spherical R 18 μm
|
|
Tracking force range -
|
3 - 5 g
|
|
Tracking force recommended -
|
4 g
|
|
Internal impedance, DC resistance -
|
1200 Ohm
|
|
Internal inductance -
|
850 mH
|
|
Recommended load resistance -
|
47 kOhm
|
|
Recommended load capacitance -
|
200-400 pF
|
|
Cartridge weight -
|
18,5 g
|
|
Replacement stylus unit -
|
