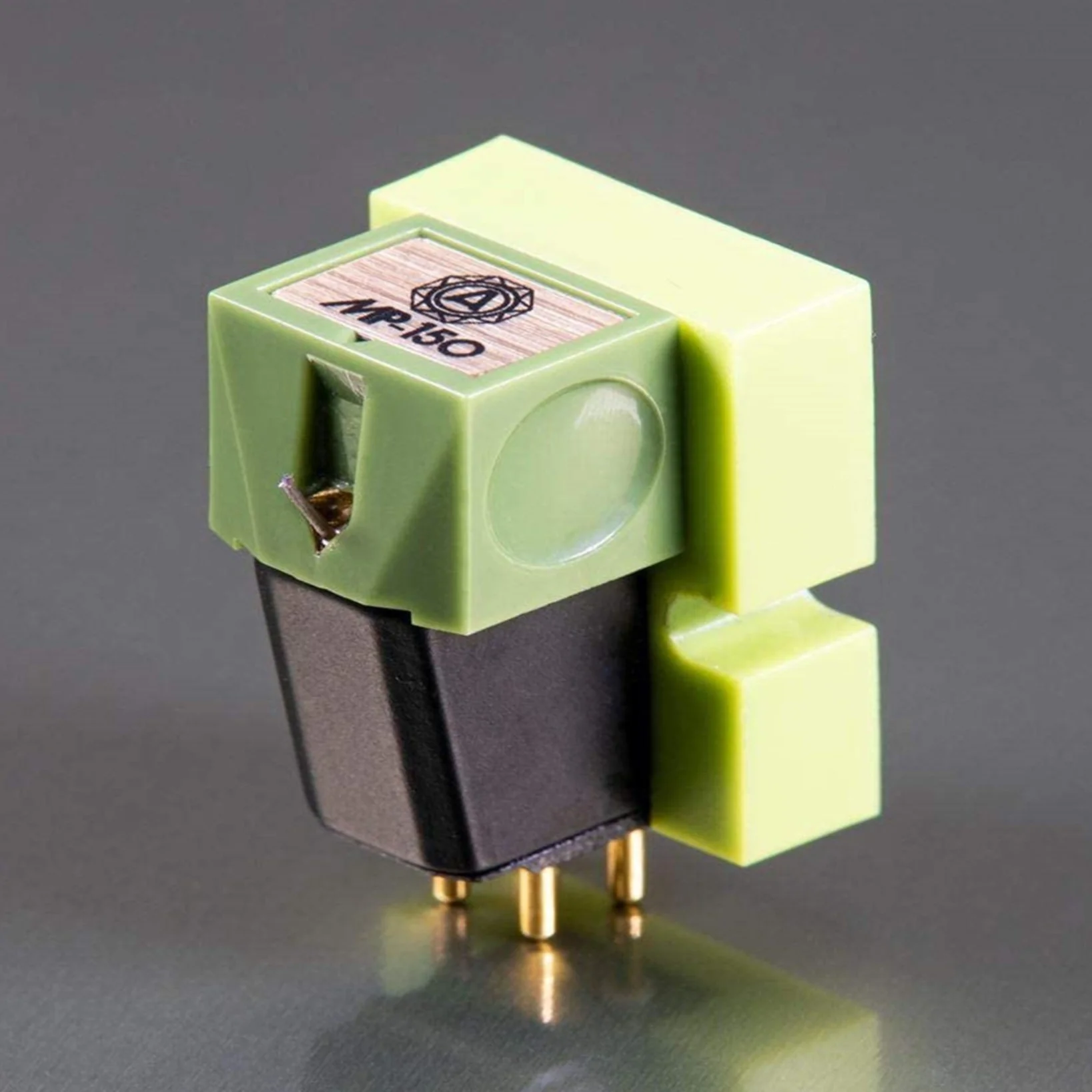

Nagaoka MP-150 Moving Magnet Cartridge
The MP-150 features a superfine polished special elliptical diamond stylus, as well as a powerful samarium cobalt magnet, aiding in the retrieval of even minuscule nuances and details. A hardened, low-mass, tapered aluminium alloy cantilever results in very high fidelity performance and impeccable tracking of the record.
The time for the stylus replacement JN-P150 varies depending on how often and how it is used. For general use at home the expected time is between 150-200 hours which by then the stylus will begin to wear and the tone quality starts to deteriorate. It is recommend to replace the stylus as early as possible so you can enjoy clear music and cause no damage to the disc grooves.
Features
- Superfine polished special elliptical diamond stylus
- Powerful samarium cobalt magnet
- Hardened low-mass, tapered aluminum alloy cantilever for very high fidelity
- Carbon fiber reinforced plastic shoe
- Anti ferrous magnetic perm-alloy shield casing
Specifications
| Type: | Moving Permalloy |
| Cantilever: | Hardened, low-mass tapered aluminium alloy |
| Stylus Type: | Superfine elliptical diamond 0.4 x 0.7 mil |
| Weight: | 6.5g |
| Output voltage: | 1kHz, 5cm/sec: 4.5mV |
| Frequency response: | 20Hz - 20kHz |
| Channel balance: | 1kHz: >1.5dB |
| Channel separation: | 1kHz: >24dB |
| Recommended loading: | 47k ohms |
| Dynamic compliance: | 60 x 10-6 cm/dyne |
| Static compliance: | 18 x 10-6 cm/dyne |
| Tracking force range: | 1.5g - 2.0g |
The MP-150 features a superfine polished special elliptical diamond stylus, as well as a powerful samarium cobalt magnet, aiding in the retrieval of even minuscule nuances and details. A hardened, low-mass, tapered aluminium alloy cantilever results in very high fidelity performance and impeccable tracking of the record.
The time for the stylus replacement JN-P150 varies depending on how often and how it is used. For general use at home the expected time is between 150-200 hours which by then the stylus will begin to wear and the tone quality starts to deteriorate. It is recommend to replace the stylus as early as possible so you can enjoy clear music and cause no damage to the disc grooves.
Features
- Superfine polished special elliptical diamond stylus
- Powerful samarium cobalt magnet
- Hardened low-mass, tapered aluminum alloy cantilever for very high fidelity
- Carbon fiber reinforced plastic shoe
- Anti ferrous magnetic perm-alloy shield casing
Specifications
| Type: | Moving Permalloy |
| Cantilever: | Hardened, low-mass tapered aluminium alloy |
| Stylus Type: | Superfine elliptical diamond 0.4 x 0.7 mil |
| Weight: | 6.5g |
| Output voltage: | 1kHz, 5cm/sec: 4.5mV |
| Frequency response: | 20Hz - 20kHz |
| Channel balance: | 1kHz: >1.5dB |
| Channel separation: | 1kHz: >24dB |
| Recommended loading: | 47k ohms |
| Dynamic compliance: | 60 x 10-6 cm/dyne |
| Static compliance: | 18 x 10-6 cm/dyne |
| Tracking force range: | 1.5g - 2.0g |
Original: $425.86
-70%$425.86
$127.76Description
The MP-150 features a superfine polished special elliptical diamond stylus, as well as a powerful samarium cobalt magnet, aiding in the retrieval of even minuscule nuances and details. A hardened, low-mass, tapered aluminium alloy cantilever results in very high fidelity performance and impeccable tracking of the record.
The time for the stylus replacement JN-P150 varies depending on how often and how it is used. For general use at home the expected time is between 150-200 hours which by then the stylus will begin to wear and the tone quality starts to deteriorate. It is recommend to replace the stylus as early as possible so you can enjoy clear music and cause no damage to the disc grooves.
Features
- Superfine polished special elliptical diamond stylus
- Powerful samarium cobalt magnet
- Hardened low-mass, tapered aluminum alloy cantilever for very high fidelity
- Carbon fiber reinforced plastic shoe
- Anti ferrous magnetic perm-alloy shield casing
Specifications
| Type: | Moving Permalloy |
| Cantilever: | Hardened, low-mass tapered aluminium alloy |
| Stylus Type: | Superfine elliptical diamond 0.4 x 0.7 mil |
| Weight: | 6.5g |
| Output voltage: | 1kHz, 5cm/sec: 4.5mV |
| Frequency response: | 20Hz - 20kHz |
| Channel balance: | 1kHz: >1.5dB |
| Channel separation: | 1kHz: >24dB |
| Recommended loading: | 47k ohms |
| Dynamic compliance: | 60 x 10-6 cm/dyne |
| Static compliance: | 18 x 10-6 cm/dyne |
| Tracking force range: | 1.5g - 2.0g |
