Ortofon Hi-Fi 510 MKII Replacement Stylus
- Replacement stylus for Ortofon 500 cartridge range
- Precise tracking
- Elliptical stylus profile
Â
Replacement stylus, recommended for the following cartridge models:Â
510 Mkll, 510, 510 P, Alpha
Please note, all cartridges within the 500 range have the same stylus-fitting, so they can all fit the Stylus 510, Stylus 520, Stylus 530 and Stylus 540. The Ortofon Alpha, as found on some Pro-Ject turntables, can be replaced or upgraded by any one of the 500 range as well.

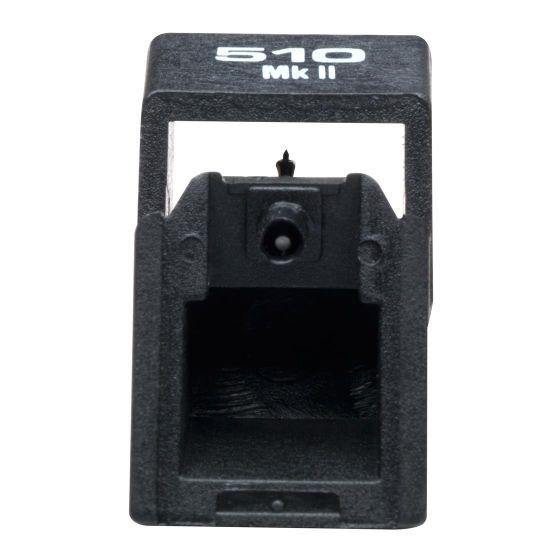

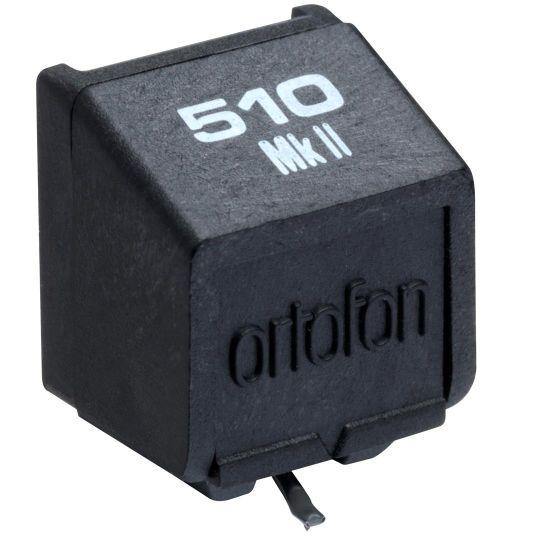

In some production runs, the Ortofon 510 stylus has been produced with a black Ortofon logo on the front. The image shown is for illustrative purposes only. If you are ever concerned about what you have bought, please contact us.
Features
- Replacement stylus for Ortofon 500 cartridge range
- Precise tracking
- Elliptical stylus profile
Specifications
| Frequency Range: | 20Hz - 23kHz |
| Frequency Response 20 - 20,000Hz: | +2 / -3dB |
| Tracking Ability at 315Hz: | Typically 70µm |
| Compliance, Dynamic, Lateral: | 25µm |
| Stylus Type: | Elliptical |
| Stylus Tip Radius r / R: | 8 / 18µm |
| Equivalent Stylus Tip Mass: | 0.3mg |
| Tracking Force Range: | 1.25 - 1.75g (12.5 - 17.5mN) |
| Recommended Tracking Force: | 1.5g (15mN) |
| Tracking Angle: | 20º |
| Stylus Colour: | Black |
- Replacement stylus for Ortofon 500 cartridge range
- Precise tracking
- Elliptical stylus profile
Â
Replacement stylus, recommended for the following cartridge models:Â
510 Mkll, 510, 510 P, Alpha
Please note, all cartridges within the 500 range have the same stylus-fitting, so they can all fit the Stylus 510, Stylus 520, Stylus 530 and Stylus 540. The Ortofon Alpha, as found on some Pro-Ject turntables, can be replaced or upgraded by any one of the 500 range as well.
In some production runs, the Ortofon 510 stylus has been produced with a black Ortofon logo on the front. The image shown is for illustrative purposes only. If you are ever concerned about what you have bought, please contact us.
Features
- Replacement stylus for Ortofon 500 cartridge range
- Precise tracking
- Elliptical stylus profile
Specifications
| Frequency Range: | 20Hz - 23kHz |
| Frequency Response 20 - 20,000Hz: | +2 / -3dB |
| Tracking Ability at 315Hz: | Typically 70µm |
| Compliance, Dynamic, Lateral: | 25µm |
| Stylus Type: | Elliptical |
| Stylus Tip Radius r / R: | 8 / 18µm |
| Equivalent Stylus Tip Mass: | 0.3mg |
| Tracking Force Range: | 1.25 - 1.75g (12.5 - 17.5mN) |
| Recommended Tracking Force: | 1.5g (15mN) |
| Tracking Angle: | 20º |
| Stylus Colour: | Black |
Original: $154.86
-70%$154.86
$46.46Description
- Replacement stylus for Ortofon 500 cartridge range
- Precise tracking
- Elliptical stylus profile
Â
Replacement stylus, recommended for the following cartridge models:Â
510 Mkll, 510, 510 P, Alpha
Please note, all cartridges within the 500 range have the same stylus-fitting, so they can all fit the Stylus 510, Stylus 520, Stylus 530 and Stylus 540. The Ortofon Alpha, as found on some Pro-Ject turntables, can be replaced or upgraded by any one of the 500 range as well.
In some production runs, the Ortofon 510 stylus has been produced with a black Ortofon logo on the front. The image shown is for illustrative purposes only. If you are ever concerned about what you have bought, please contact us.
Features
- Replacement stylus for Ortofon 500 cartridge range
- Precise tracking
- Elliptical stylus profile
Specifications
| Frequency Range: | 20Hz - 23kHz |
| Frequency Response 20 - 20,000Hz: | +2 / -3dB |
| Tracking Ability at 315Hz: | Typically 70µm |
| Compliance, Dynamic, Lateral: | 25µm |
| Stylus Type: | Elliptical |
| Stylus Tip Radius r / R: | 8 / 18µm |
| Equivalent Stylus Tip Mass: | 0.3mg |
| Tracking Force Range: | 1.25 - 1.75g (12.5 - 17.5mN) |
| Recommended Tracking Force: | 1.5g (15mN) |
| Tracking Angle: | 20º |
| Stylus Colour: | Black |
